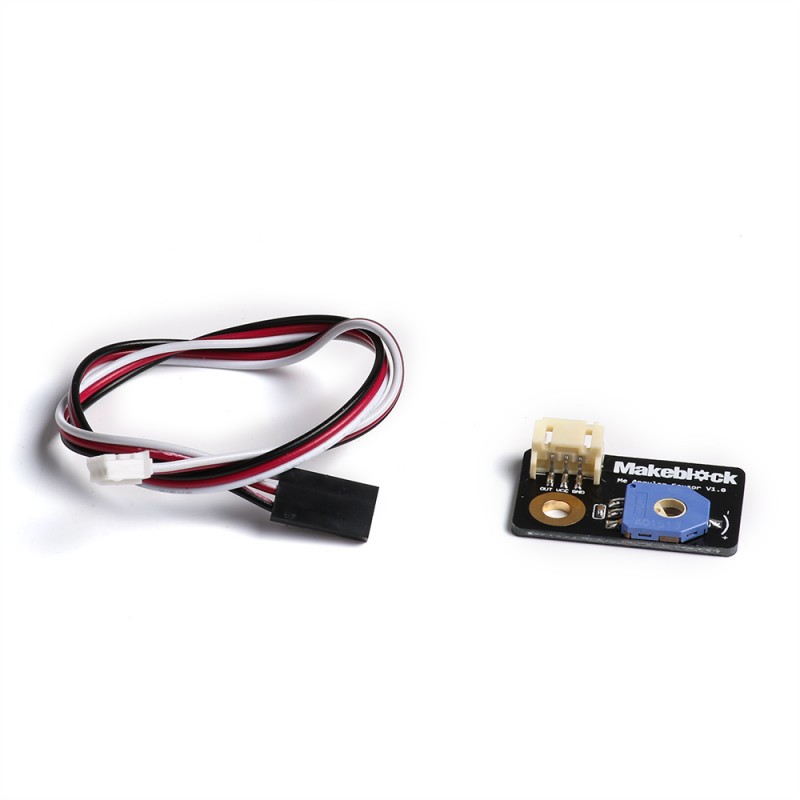

Me Angular Sensor V1

Me Angular Sensor V1

What is Me Angular Sensor?

• Being connected with other Makeblock parts, Me Angular Sensor is designed to achieve the goal of detecting the angle value of a link mechanism or the angle value of a joint.

Features

• Compatible with mechanical parts of Makeblock;
• Equipped with high-precision trimmer potentiometer which has good linearity for long-time use;
• Small in size, with wires included for easy assembling;

Specifications :

• Interface PH-3P-2.0mm Cable
• Effective Rotation Angle 330°
• Resistance Value 10K ohms
• Rotational Life 1M cycles
• Input Voltage 5V
• Output Analog
• Mounting hole 1 x 4mm Round Hole
• Product Dimension (L*W*H) 32 x 20 x 7mm (1.25 x 0.78 x 0.27inch)
• Net Weight 5.8g (0.2oz)
• Gross Weight 8g (0.28oz)
• Part List 1 x Me Angular Sensor V1
• 1 x 3-pin 2.0 connector to 3-pin Dupont Female Cable

• No need to burn program into this angular sensor.
