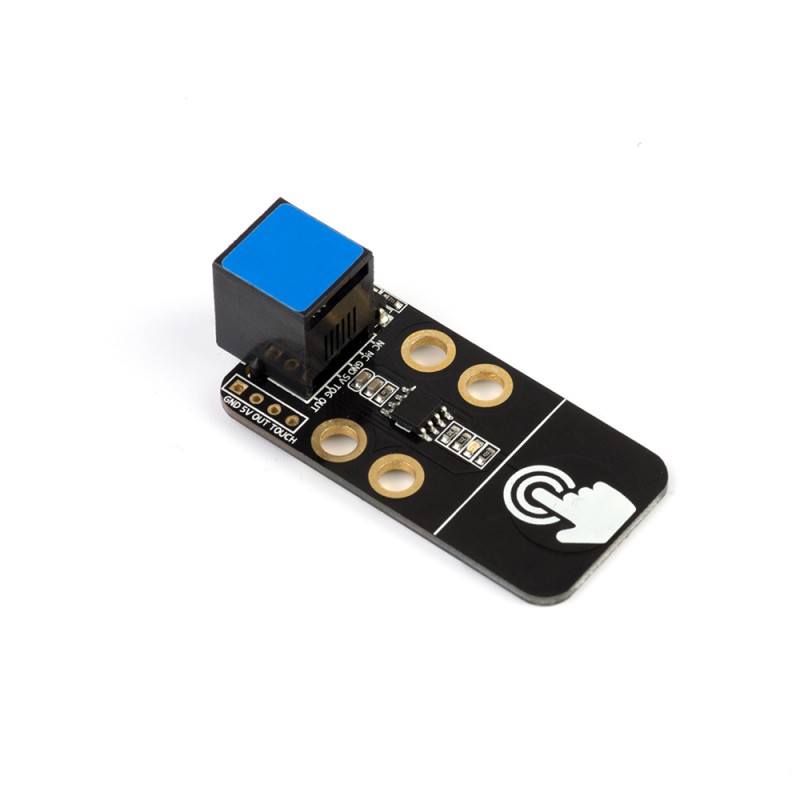

Me Touch Sensor V1

Me Touch Sensor V1

Me Touch Sensor is a capacitive touch sensor based on TTP223-BA6. It will be triggered by finger touch. You can also connect the "TOUCH" pinhole to some metal construction and touch the metal to trigger the sensor. The sensitivity is fixed to a proper level. If you need to adjust it to fit some special case, you can try to change the value of R3 and C4. It needs 0.5s for the self-calibration after energized. During that, please don't touch the sensor.

Features:

• Contactless touch trigger
• self-adaptation sensitivity
• 16mm interval M4 mounting holes, compatible with Makeblock beams
• 2.54mm pin holes for connecting with Dupont wire
• Easy wiring with 6P6C RJ25 interface
• Arduino library for easy programming

Specification:

• Rated Voltage: 5V
• Size: 24 x 48 x 16 mm (length x width x height)
