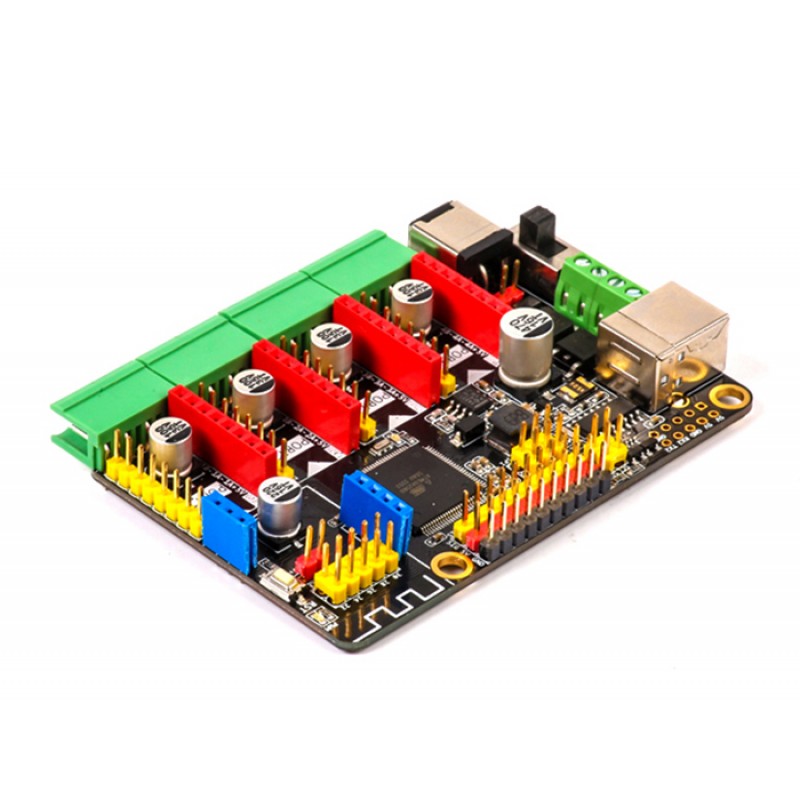

MegaPi V1

MegaPi V1

Features :

• Four motor driver interfaces for adding encoder motor driver and stepper motor driver, and thus to drive DC motors, encoder motors and stepper motors;
• One wireless communication interface for adding Bluetooth module or 2.4G module;
• Ten servo interfaces which enable the board to drive up to 10 servos at the same time;
• Two high-power MOS driver interface which is able to drive devices with a maximum current of 10A. Maximum current output of DC 5V output port is 3A.;
• One Raspberry Pi switch interface (requires manual soldering) to realize 5V to 3.3V serial communication.

Specifications :

• Microcontroller ATMEGA2560-16AU
• Input Voltage DC 6V-12V
• Operating Voltage DC 5V
• I/O Pins 43
• Serial Ports 3
• I2C Interface 1
• SPI Interface 1
• Analog Input Pins 15
• DC Current per I/O Pin 20mA
• Flash Memory 256KB
• SRAM 8KB
• EEPROM 4KB
• Clock Speed 16 MHz
• Dimension 85 x 63mm
• Package Content 1 x MegaPi
• 1 x 2.54mm- 2 x 5 16mm Female Header
• 10 x M2.5 x 6mm Screw
• 5 x Brass Stud M2.5 ×12+6
• 4 x Brass Stud M2.5 x 19mm
