Optical Encoder Motor Pack-25 9V/185RPM

Optical Encoder Motor Pack-25 9V/185RPM

What Is Optical Encoder Motor Pack-25 9V/185RPM?

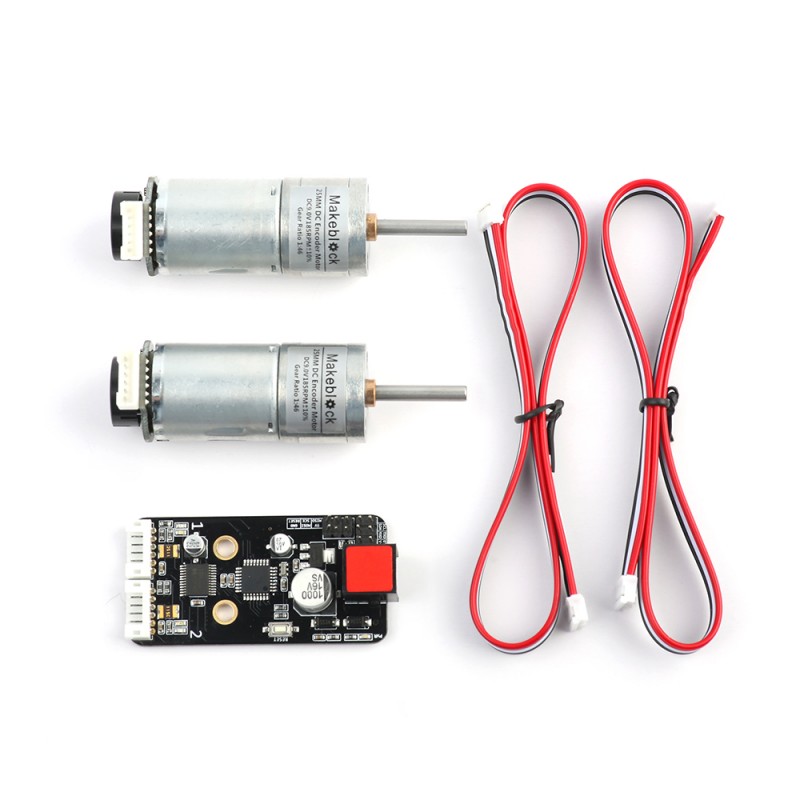

• 25mm Encoder DC Motor Pack includes two encoder motors, one encoder motor driver and two cables. In contrast to the DC motor, a photoelectric encoder is added into the encoder motor for detecting speed which is fed back to the signal input terminal for PID control to implement servo control for the motor.

Specifications :

• SKU 95052
• Rated voltage 9.0V (DC)
• Temperature range -20℃~+60℃
• Humidity range 0%-90%
• No-load current ≦ 200 mA
• No-load speed 185±10% rpm
• Rated load 0.9 Kgf.cm
• Rated current ≦ 550mA
• Rated speed 135±10% rpm
• Starting torque 4.5kgf.cm
• Locked-rotor current ≥ 2.0 A
• Parts List 1 x Me Encoder Motor Driver
• 2 x Optical Encoder Motor-25 9V/185RPM
• 2 x Encoder Motor Wire
• Package Dimension 200 x 140 x 30mm (7.9 x 5.5 x 1.2inch)
• Net Weight 222g (7.83oz)
• Gross Weight 228g (8.04oz)
