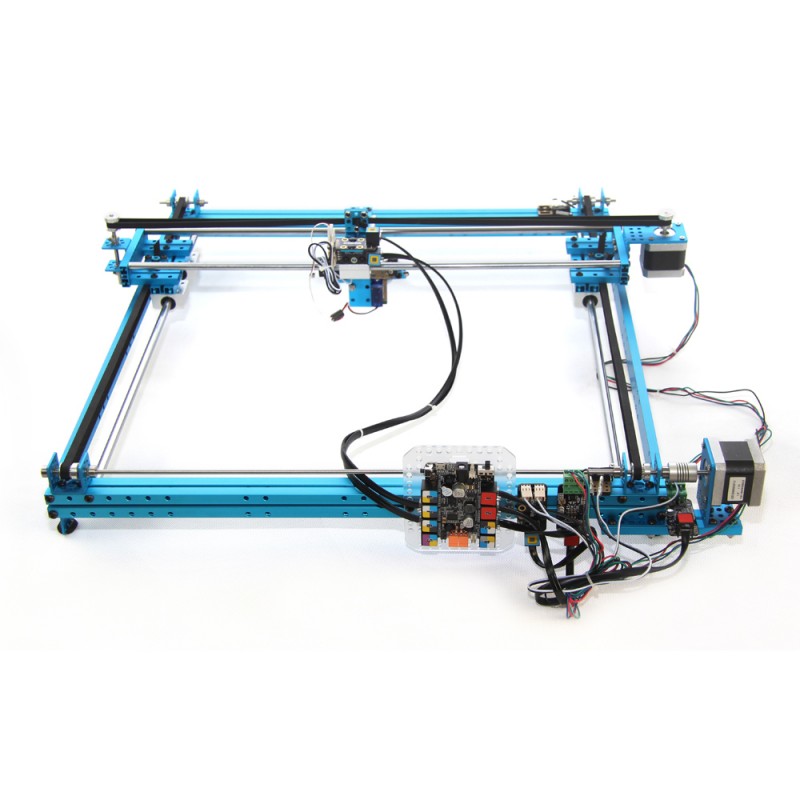

XY-Plotter Robot Kit V2.0

XY-Plotter Robot Kit V2.0

What is XY-plotter?

• XY Plotter Robot Kit is a drawing robot that can move a pen or other instrument to draw digital artwork on flat surface. It can also be developed into a laser engraver by adding the Laser Engraver Upgrade Pack.

A variety of components

• This kit consists of over 60 kinds of components from Makeblock, including beams, brackets, motors, etc. Here's the picture of all the components.

mDraw

• mDraw is a cross-platform open-source software developed by Makeblock.

Compatibility: mDrawBot (mScara, mCar, mEggBot, mSpider), XY Plotter kit (servo mode, laser mode)
OS Environment: Windows, Mac
Supported File Type: *.svg, *.bmp (convert to *.svg)

WARNING:

Due to the particularity of laser, the application scope of the laser pack and products that included laser module is limited, please do not expand their application scope. Limitations are as follows:

1. The laser pack can only be used in the following kit:

• Use in mScara, one building form of mDrawbot (SKU: 90082, 90086)
• Use in XY Plotter Robot Kit (With Electronic Modules) (SKU: 90014)
• (Note: For kits that included laser pack, we provide detailed manual and technical support.)

2. The laser pack can only be used in the following DIY product:

• DIY XY Plotter Robot Kit (without Electronic Modules) (SKU: 91018)
• Other DIY products for personal use or agency use, for instance, transforming XY plotter or 3D Printer.
• (Note: For using laser pack in DIY products, we only provide laser specification.)
